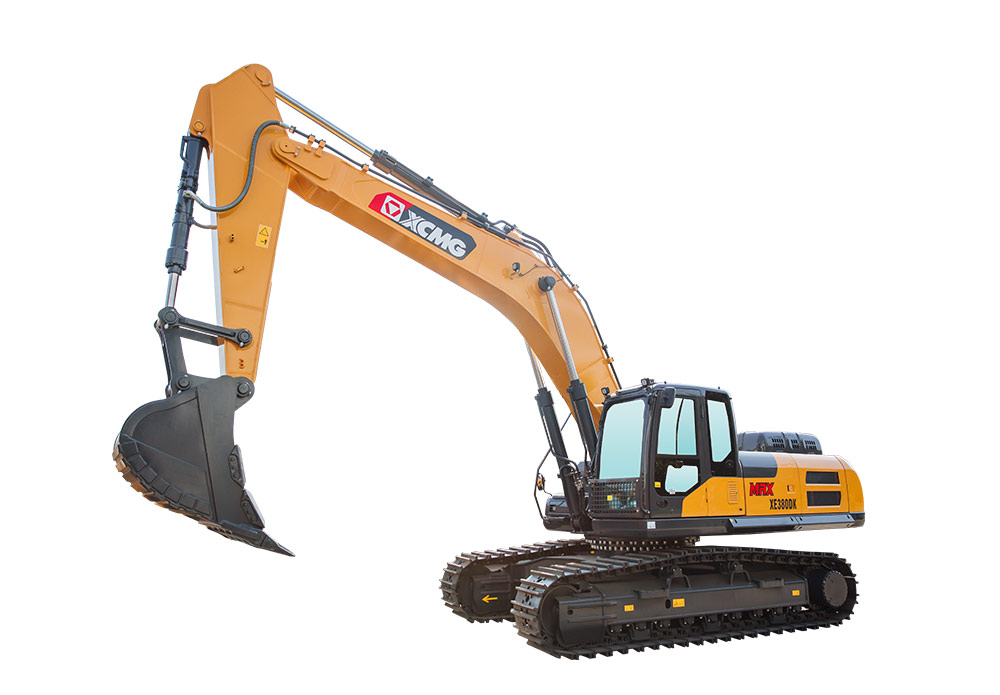

Crawler Excavator
XE380DK Share
  • Operating weight(Kg)
    38200
  • Bucket capacity(m³)
    1.9-2.1
  • Engine Model
    Cummins
XE380DK
  • Product FEATURE
  • PARAMETERS
  • CONSTRUCTION CASES
Product FEATURE

The new positive flow sub-pump independently controls the main pump, optimizing speed sensing and load adaptive control to achieve oil feeding on demand. Damping spring is added inside high performance silicone oil shock absorber, which can effectively isolates the shock wave. The multi-functional machine intelligent control system can be widely applied to different working conditions. It can realize a variety of different operation requirements.

PARAMETERS
Item
Operating weight
Bucket capacity
Engine Model
Rated power/speed
Maximum torque/speed
Travel speed(H/L)
Swing speed
Displacement
Bucket digging force
Arm digging force
Unit
Kg
-
kw/rpm
N.m
km/h
r/min
L
kN
kN
Parameter
38200
1.9-2.1
Cummins
214/2100
1344/1300
5.6/3.3
9.6
8.9
292
209
