Crawler Excavator

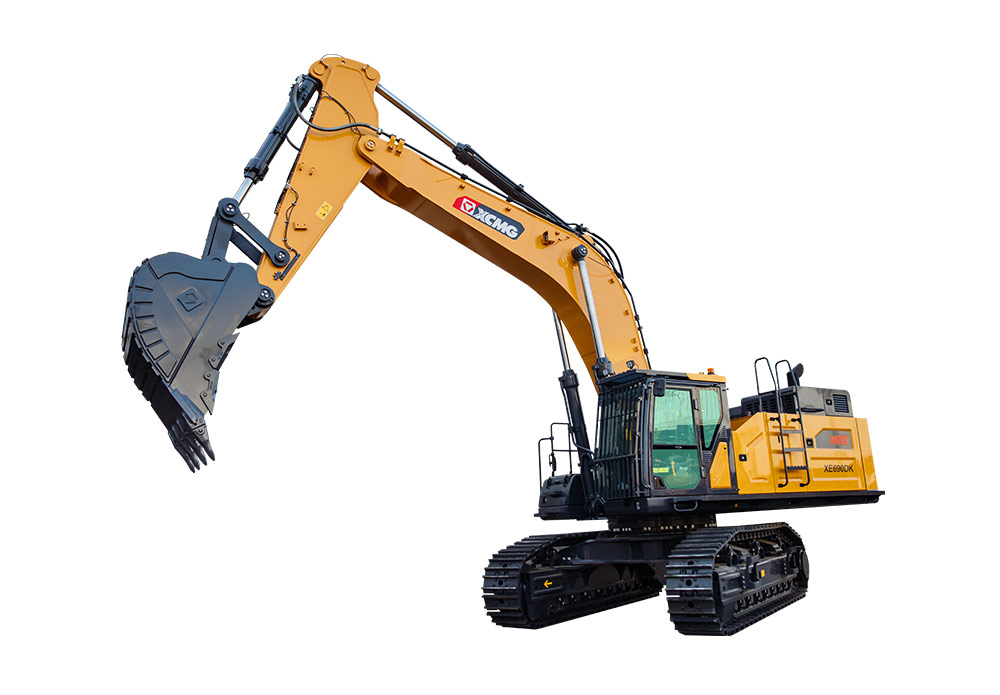

XE690DK Share
  • Operating weight(Kg)
    65800
  • Bucket capacity(m³)
    3.8-4.5
  • Engine Model
    WEICHAI
XE690DK
  • Product FEATURE
  • PARAMETERS
  • CONSTRUCTION CASES
Product FEATURE

XE690DK is equipped with a reinforced large undercarrage and high-power travel reducers for mine operation. Ultra long warranty period, greatly reducing the whole life maintenance cost of the excavator. A variety of attachments are provided to match the requirements of different working conditions.

PARAMETERS
Item
Operating weight
Bucket capacity
Engine Model
Rated power/speed
Maximum torque/speed
Travel speed(H/L)
Swing speed
Displacement
Bucket digging force
Arm digging force
Unit
Kg
-
kw/rpm
N.m
km/h
r/min
L
kN
kN
Parameter
65800
3.8-4.5
WEICHAI
566/2100
3000/1500
4.9/2.9
7.3
16.72
382
318
