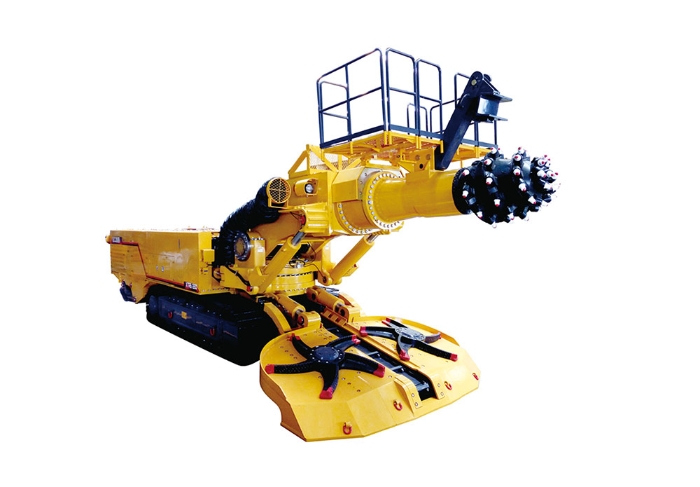

XTR Series Tunnel Roadheader
XTR6/260 Share
  • Weight (t)
    92
  • Length/Include second converyor (mm)
    13500/21000
  • Ramp plate (mm)
    3200/3600
XTR6/260
  • Product FEATURE
  • PARAMETERS
  • CONSTRUCTION CASES
Product FEATURE

It's applicable for highway,railway,subway and water conservancy tunneling work.

PARAMETERS
Item
Weight
Dimension
Length/Include second converyor
Width
Ramp plate
Main frame
Height
The highest point of cutting head for laying horizontally
Main frame
Undercut max
Ground Clearance
Cutting cross section
Height
Width
Gantry Height
Traveling Speed
Power of Cutting motor
Power of Pump Station Motor
Supply voltage
Frequency of Power
Loading Ability
Pressure of the Spraying System
Unit
t
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
m/min
kW
kW
V
Hz
m³/min
MPa
Parameter
92
13500/21000
3200/3600
2600
3380
2380
200
270
6200
6000
300
6
260/200
132
AC1140
50
星轮式/4.3
≥2
