Single drum rollers & soil compactors
XS143H Share
  • Operating weight(kg)
    14000
  • Axle load, front(kg)
    7300
  • Axle load, rear(kg)
    6700

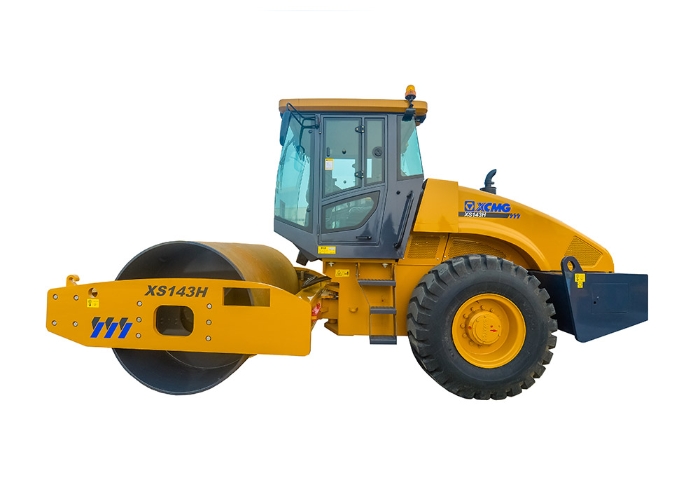

XS143H
  • Product FEATURE
  • PARAMETERS
  • CONSTRUCTION CASES
Product FEATURE

XS143H has a very high static line load and exciting force and is suitable to the compac- tion operation of pebbles,sandy soils,mo- raine soil,blasting rock and clayey soil,etc. and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects,with the maximum working depth up to 1.0m and above.Thus,it is a kind of important compaction equipment in the construction of large projects such as the expressway,railway,port,etc.

PARAMETERS
Item
Operating weight
Axle load, front
Axle load, rear
Static linear load
Engine manufacturer
Engine Model
Rated Power
Speed range(Forward)
Speed(1)
Speed(2)
Speed(3)
Speed(4)
Speed range(Backward)
Speed(1)
Speed(2)
Speed(3)
Vibration frequency
Vibration amplitude
Centrifugal force
Working width
Max. gradeability
Track radius, out
Overall dimensions
Unit
kg
kg
kg
N/cm
-
-
kW/rpm
km/h
km/h
km/h
km/h
km/h
km/h
km/h
Hz
mm
kN
mm
%
mm
mm
Parameter
14000
7300
6700
315
SDEC
SC4H135G2
100/2200
0-7.3
-
-
-
-
-
-
28/33
1.9/0.95
274/190
2130
30
6800
6150×2300×3200
