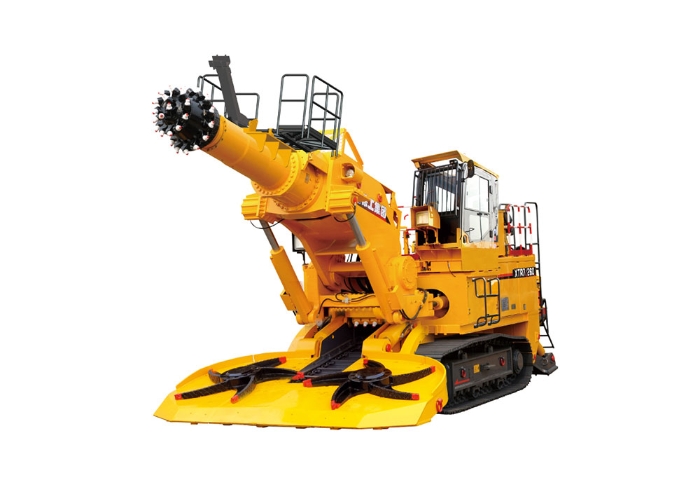

XTR Series Tunnel Roadheader
XTR7/260 Share
  • Weight (t)
    100
  • Length/Include second converyor (mm)
    14000/19700
  • Ramp plate (mm)
    3800
XTR7/260
  • Product FEATURE
  • PARAMETERS
  • CONSTRUCTION CASES
Product FEATURE

It's applicable for highway,railway,subway and water conservancy tunneling work.

PARAMETERS
Item
Weight
Dimension
Length/Include second converyor
Width
Ramp plate
Main frame
Height
The highest point of cutting head for laying horizontally
Main frame
Undercut max
Ground Clearance
Cutting cross section
Height
Width
Gantry Height
Traveling Speed
Power of Cutting motor
Power of Pump Station Motor
Supply voltage
Frequency of Power
Loading Ability
Pressure of the Spraying System
Unit
t
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
m/min
kW
kW
V
Hz
m³/min
MPa
Parameter
100
14000/19700
3800
3200
3740
2530
440
220
7200
7500
380
6
260/200
132
AC1140
50
星轮式/4.3
≥2
