Single drum rollers & soil compactors
XS223JE(Tier II) Share
  • Operating weight(kg)
    22000
  • Axle load, front(kg)
    11000
  • Axle load, rear(kg)
    11000
XS223JE(Tier II)
  • Product FEATURE
  • PARAMETERS
  • CONSTRUCTION CASES
Product FEATURE

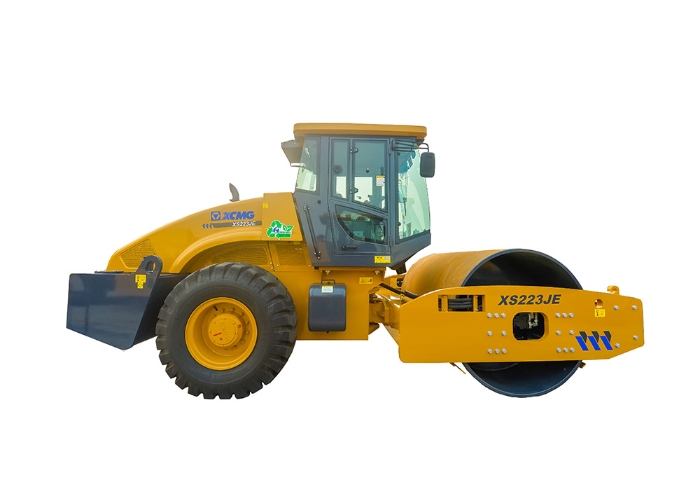

XS223JE (Vibratory II) Vibratory Roller is a high-efficiency and energy-saving super-heavy machinery driven single drum vibratory roller independently developed by XCMG Construction Machinery Co., Ltd. This product  is mainly used for compaction of ground, suitable for compaction operations of pebbles, sandy soils, hail, blasting rocks and viscous soils. It is also suitable for concrete and stability in various large-scale projects. The compaction of the basic materials of soil is the ideal compaction equipment for the construction of high-grade highways, airports, ports, embankments and industrial construction sites.

PARAMETERS
Item
Operating weight
Axle load, front
Axle load, rear
Static linear load
Engine manufacturer
Engine Model
Rated Power
Speed range(Forward)
Speed(1)
Speed(2)
Speed(3)
Speed(4)
Speed range(Backward)
Speed(1)
Speed(2)
Speed(3)
Vibration frequency
Vibration amplitude
Centrifugal force
Working width
Max. gradeability
Track radius, out
Overall dimensions
Unit
kg
kg
kg
N/cm
-
-
kW/rpm
km/h
km/h
km/h
km/h
km/h
km/h
km/h
Hz
mm
kN
mm
%
mm
mm
Parameter
22000
11000
11000
516
SDEC
SC8D185.2G2B1
136/1800
2.69
5.25
11.12
-
2.66
5.27
-
28/33
1.86/0.93
374/290
2130
30
6500
6320×2390×3200
