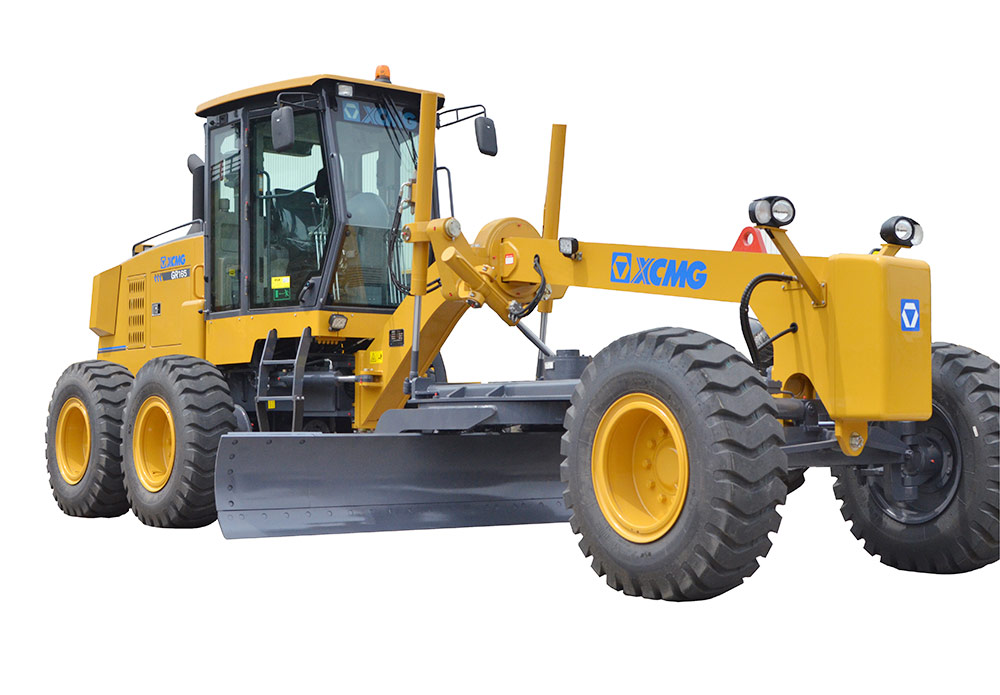

Motor Grader
GR165 Share
  • Manufacturer
    Cummins
  • Engine Model
    6BTA5.9
  • Rated power/speed (kW/rpm)
    132//2200
GR165
  • Product FEATURE
  • PARAMETERS
  • CONSTRUCTION CASES
Product FEATURE

The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

PARAMETERS
Item
Manufacturer
Engine Model
Rated power/speed
Forward velocity
Reverse speed
Tractive effort f=0.75
Minimum turning radius
Length X chord height
Overall dimension(standard)
Total weight(standard)
Unit
-
-
kW/rpm
km/h
km/h
kN
m
mm
mm
kg
Parameter
Cummins
6BTA5.9
132//2200
5/8/11/19/23/38
5/11/23
≥77
7.3
3660*610
8900*2625*3420
15000
