Asphalt distributor
XLS803 Share
  • Max. spraying width (m)
    6 m
  • Asphalt spraying amount (kg/m²)
    0.2-3.0
  • Deviation of spraying amount (kg/m²)
    ±0.07
XLS803
  • Product FEATURE
  • PARAMETERS
  • CONSTRUCTION CASES
Product FEATURE

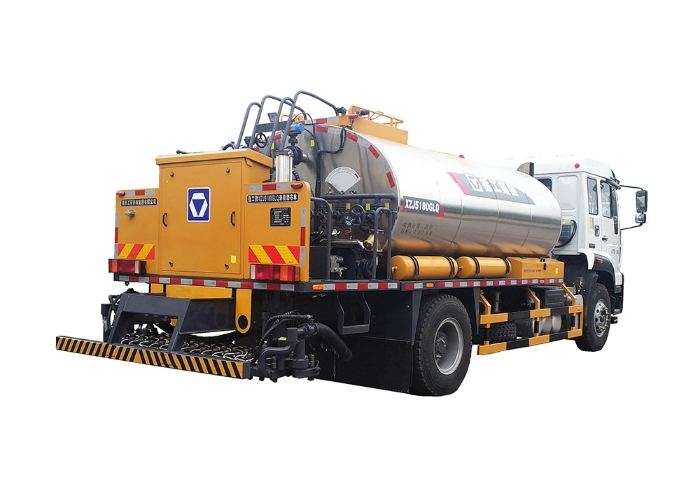

XLS803 intelligent asphalt distributor is an automation product specialized in spraying emulsified asphalt, diluted asphalt, hot asphalt, modified asphalt. The product controls the whole process of asphalt spraying through the controller, thus the asphalt spraying amount is not affected by the change of speed and the high-precision spraying is achieved. It is mainly used for construction and maintenance projects of highway, all grades of roads and municipal roads, suitable distributing construction of prime coat, bonding layer, upper and lower sealing layers of different grades of road surface.

PARAMETERS
Item
Max. spraying width
Asphalt spraying amount
Deviation of spraying amount
Capacity of asphalt tank
Operating speed
Chassis model
Engine type
Engine power
Driving mode
Maximum traveling speed
Fuel tank capacity
Unit
m
kg/m²
kg/m²
km/h
-
-
kW/(r/min)
-
km/h
L
Parameter
6 m
0.2-3.0
±0.07
8(Notice 7.5)
3-15
SINOTRUCK STEYR ZZ1181M521GE1 (China Tier V) -
MC07.28-50
206/2300
4×2
95
300
