Pavers
RP903 Share
  • Engine manufacturer
    SDEC
  • Engine Model
    SC9DK220
  • Rated Power(kW/rpm)
    162/2000
RP903
  • Product FEATURE
  • PARAMETERS
  • CONSTRUCTION CASES
Product FEATURE

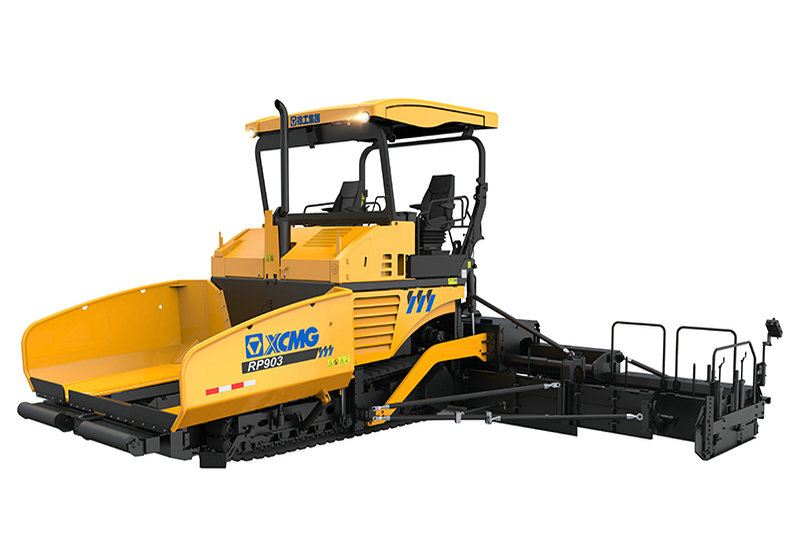

Featuring reliable quality, excellent working performance, and high cost-performance, RP903 paver is one important model of 3 series large pavers and can be extensively applied for the paving of highway pavements of diversified grades. The application of the nowadays world's most advanced technologies, including full-hydraulic drive, computer control, left and right independent drives, ultrasonic material level sensing control, electronic automatic leveling, and tamper compacting, realizes the advantages of good paving stability, uniform material conveyance/distribution and supply, high pre-compactness, good road evenness,  comfortable operations, convenient maintenances, and energy-saving and environmental-friendliness. The critical supporting parts of this machine adopt imported products to realize leading level of manufacturing quality and reliability among like imported products. This machine is an ideal equipment for paving of road asphalt concrete materials.

PARAMETERS
Item
Engine manufacturer
Engine Model
Rated Power
Operating weight
Overall dimensions
Basic Pave Width
Maximum Pave Width
Maximum L ayer Thickness
Maximum Paving Speed
Maximum Travel Speed
Theoretic productivity
Hopper Capacity
Gradeability
Heating of screed
Travel type
Unit
-
-
kW/rpm
kg
mm
m
m
mm
m/min
km/h
t/h
t
%
-
-
Parameter
SDEC
SC9DK220
162/2000
24300~28000
7180×3000×4060
3.0~5.85
9.15
400
18
3
900
15
20
Electric heating
Crawler
