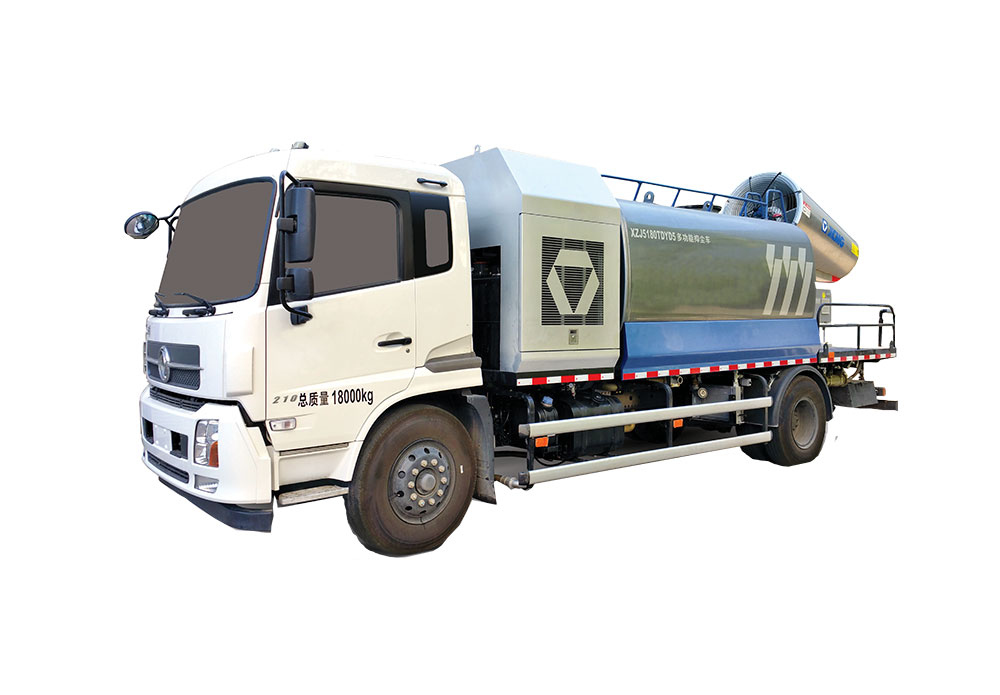

Multifunctional Dust Suppression Vehicle
XZJ5180TDY Share
  • Total Weight(kg)
    18000
  • Rated Payload(kg)
    6565
  • Max. Speed(km/h)
    98
XZJ5180TDY
  • Product FEATURE
  • PARAMETERS
  • CONSTRUCTION CASES
Product FEATURE

The product is used for urban air purification, dust suppression for coal yard and port material pile, moisture preservation and cooling of sport field. In addition, low pressure flushing function can be provided by low pressure water channel system.

(1)Wide Range, Flexible Pitching

The maximum range is 120 m, and there is 8-stage adjustment function, which basically reach the building height of super-high rise (such as Wangjing SOHO independent commercial building). The sprayer can realize ±120° horizontal rotation; the blower can realize -10°~40° pitching, which largely expand the applicable working conditions, such as pesticide spraying, building cleaning, emergency rescue, etc.

(2)Friendly Manipulation, Long-range Operation

The complete vehicle has high intelligence degree, and one-key automatic operation can be realized. Self-test and fault diagnosis function is available; sound and light alarm will be given when there is abnormal phenomenon; full-functional remote controller is optional, and remote operation may act within about one hundred meters range.

(3)Super-large Water Tank, Diversified Functions

Super-large water tank is set; and one time of water filling can cover the spraying area. Standard water cannon is provided; and high pressure water column is adjustable (heavy rain, moderate rain, drizzle). Opposite-flushing and spraying device is set, and it can replace conventional cleaning truck for road washing and sprinkling.

PARAMETERS
Item
Total Weight
Rated Payload
Max. Speed
Max. Cimbing Angle
Water Gun Range
Spray Flow
Volume of Water Tank
Fog Pitching Angle
Fog Gun Angle
Low-pressure Flushing Width
Sprinkler Width
Post Green Spray Width
Low-pressure Sprinkler Flow
Unit
kg
kg
km/h
°
m
L/min
°
°
m
m
m
L/min
Parameter
18000
6565
98
20
100
150
10
-10~+40
±120
24
16
14
400-600
